Hermetic seal-less injection moulded thermoplastic pumps are the best solution for light duty applications.

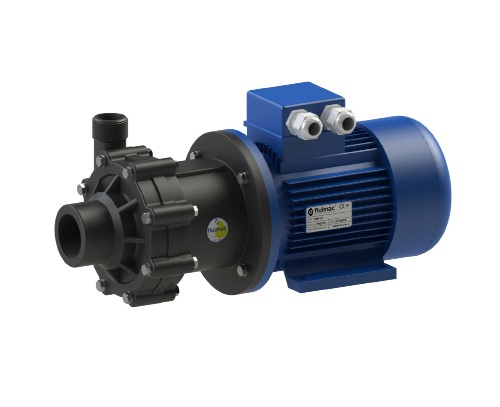

Mag drive centrifugal pumps series COMPASS are made of Polypropylene and PVDF, and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, COMPASS series reduce the risks of leakage and emissions and the maintenance costs.
The transmission of the motion occurs through magnetic joints without any mechanical seal and
this design guarantees the maximum safety and efficiency.
The pumped liquid has to be clean and without solids in suspension. -
- Casing and impeller in PP/PVDF
- O-ring in EPDM and VITON
- ALLUMINA + PTFEC 99.7% (standard)
- Inlet connections:1” 1/2f
- Outlet connections:1” m
- Max. Flow rate:13 m³/h
- Max. Delivery head:14 mst
- Max Viscosity: 200CPS
- Temperature PP:-5°C~65°C
- Temperature PVDF:-10°C~90°C
- Impeller:closed
Impeller 0.55 Kw 0.75 Kw ø 98 mm Up to1.1 Up to1.3 ø 85 mm Up to1.5 Up to1.8 ø 70 mm Up to1.8 Up to2 Size Kw RPM IEC 71 0.55 2 poles - 2900 IEC 71 0.75 2 poles - 2900 -
