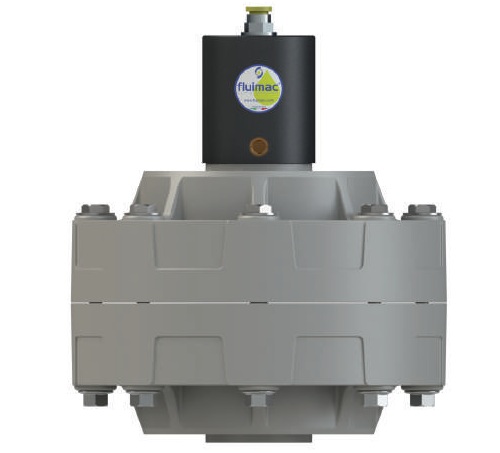

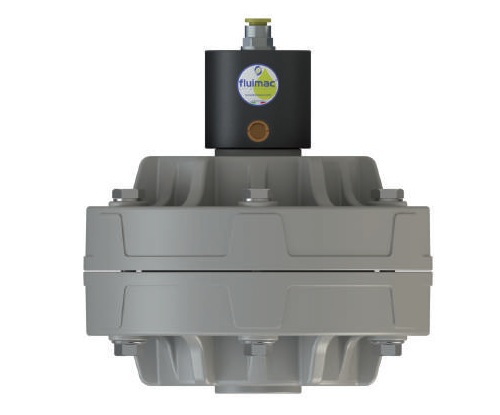

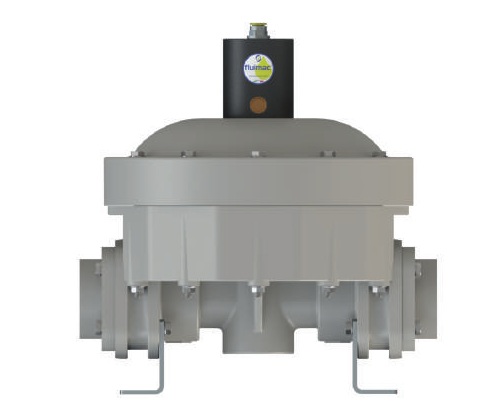

Fluimac pulsation damper works actively with compress air and a diaphragm, automatically setting the correct pressure to minimize the pulsations. Pulsation dampeners require minimum maintenance and are, subject to the requirements of the application, available in the same housing and diaphragm materials as the pump.
-
Materials: Polypropylene (PP), Polyvinylidene Fluoride (PVDF), Aluminum, 316 Stainless Steel, and Acetal (POMc).
Model Fluid
ConnectionsAir
ConnectionMax air pressure Wetted Materials Compatible with Pumps Model Housing Materi Air-Side Diaphragm Fluid-Side Diaphragm ATEX
Zone(BSP) (mm) (BAR) D020 P- H T X D020 3/4” 6 8 PP / PVDF / POMc / SS316 P7 / P18 / P30 q D025 1” 8 P50 / P65 / P100 D020 P- = PP H = Hytrel PTFE - = Zone2 D040 1.5” 10 P160 / P250 / P400 D025 KC = PVDF + CF M = Santoprene X = Zone1 D050 2” 12 PP / PVDF / ALU / SS316 P500 / P700 / P1000 D040 S- = 316SS D050 A- = ALU -
