  • Brand
  • FMI
  • Product Name
  • "STFQ"Micro volume adjustable displacement dispenser pump
  • Item
  • STFQ
  • Brief Introduction：
  • Diagnostics/IVD, Medical, Biotechnology, and Analytical Instrumentation
  • The STFQ is an advanced minuaturized fluidic system designed to control small volumes of fluid at the microscale level for a broad range of applications. It is currently available in standard drive configurations ranging from 250 µL through1.25 mL in 1 µL increments. Standard pump head options are available with various sealing options and diameters.
    Achieving optimal performance in accuracy and repeatability with innovative design modifications, this product enables the ability to do precision microliter dispensing
  • Pump Specifications
    WETTED MATERIAL OPTIONS:
    Ceramic: Alumina, Zirconia
    Pump Housing: PVDF, ETFE, Polypropylene
    SEAL MATERIAL OPTIONS:
    Carbon-Filled PTFE, FKM, FFKM, Rulon AR, UHMW-PE
    PORT OPTIONS:
    1/4-28 UNF Threaded Ports,
    Barb Fittings (1/8” - 1/4” Tubing ID), 1/4” Compression Nuts

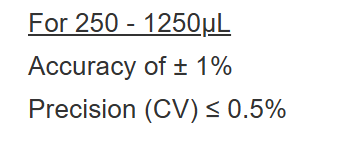

    DISPENSE VOLUME:
    For 250 - 1250µL
    Accuracy of ± 1%
    Precision (CV) ≤ 0.5%

    DRIVE MOTOR SPECIFICATIONS:
    Rated Current
    Rotational:2.3A
    Step Angle
    Rotational:1.8。FullStep
    Motor Direction
    Calibrated Clockwise
    Motor Frame
    Rotational:NEMA23(67mm)
    Motor Speed
    Rotational: 1-1000RPM
    Operating Temperature
    Rotational:Bidirectional 0。C to 50。C

    • CeramPump® valveless technology simplifies fluidic architecture with one moving part in fluid path
    • Internal sapphire-hard ceramics are chemically inert, dimensionally stable, and abrasion resistant
    • Patented fixed link adjustment mechanism Optical sensor for positioning feedback Configurable options available
    • Minimal pulse for precise control and consistent, repeatable dispense volume
    • Reduced shear stress protects delicate samples Quiet operation for controlled environments Less gas ingress prevents bubble formation
    • Flush port options available for continuous flushing
    • Maintains 0.5% precision for millions of cycles without maintenance or recalibration
