  • Brand
  • Zaxis
  • Product Name
  • Electronic Variable Metering Pumps
  • Item
  • eVmp / Vmp
  • Brief Introduction：
  • Medical, Industrial, pharmaceutical, environmental engineering, electronics, food & dairy

  • The Zaxis eVmP is a patented, programmable, fluid dispense and metering device, complete with integrated industrial Ethernet and serial controls. Dispense volume is automatically adjustable from pL to mL. Changing system and fluid dynamics are easily overcome by electronic changes to stroke volume. Zaxis eVmP's small size allows it to be utilized in close proximity to bulk chemistry, or onboard management of discrete, fluid recipe and process control. The Zaxis eVmP uses proprietary internal ceramics, designed for millions of maintenance free cycles, and drift free accuracy.
    Valve-less, ceramic internals provide syringe-like precision and accuracy without the throughput limitations or excessive maintenance cost to wear items, or the costly inaccuracy of tubing and diaphragm pumps. Complete with our Touch Screen Interface (TSi), all fluid control parameters are programmable, utilizing a precision stepper motor for pump volume and selectable stepper or servo motor for dispensing. The TSi allows for plug and play with up to 32 pumps. PLC communication is RS485 selectable, with control up to 128 pumps.

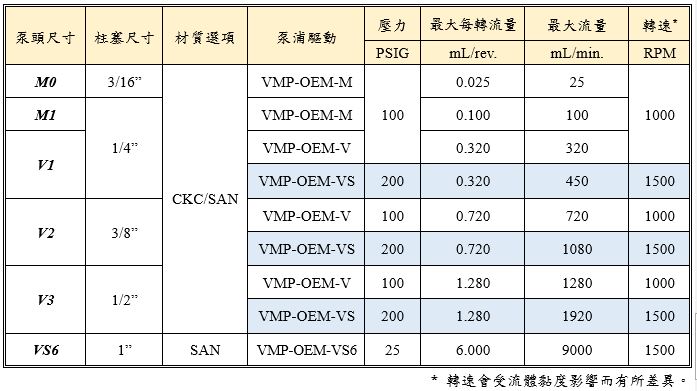

  •   Specification Benefit
    eVmP Dimensions 3” wide, 4.4” high, 9” deep
    7.6 cm wide, 11.2 cm high, 22.9 cm deep    		 A minature footprint enables you to maximize your floor
    space.
    TSi Dimensions 6” wide, 4" high, 2.7” deep
    15.2 cm wide, 10.2 cm high, 22.9 cm deep    		 The eVmP comes with an intuitive touch screen interface. Up to 32 eVmPs can be controlled at once using a single TSi.
    Weight eVmP: 7 lbs
    TSi: 12 lbs    		 Pump, Drive, and embedded stepper controls all in a small packgage.
    Accuracy and Precision
    System Power    		 +/- 19’o full scale accuracy, 0.5 CV with
    0.01 pL resolution
    60 watts, 2 amps, 24 VDC, 110 - 240 VAC    		 Excellent repeatability. Hit your target every time, minimize waste.
    Both for domestic and international use, CE.
    Pressure Range 0 - 100 psi (customization available) With a variable pressure range, we can ensure the eVmP satisfies the requirements of your application. The key is flexibility.
    Dispense and
    Flow Range    		 0 - 1.28 mL/rev, up to 900 mL/min continuous Ideal for low volume dispensing and high flow prime, clean, and purge.
    Wetted Path Options Ceramic (medical grade alumina oxide),
    316SS, 303/304SS, PVDF, PEEK
    (customization available)    		 With flexibility in mind, we can ensure the eVmP meets even the most challenging applications including: chemically inert as well as food and pharma.
    eVmP Operational Temperature -20°C -70°C, non-condensing The eVmP's stable design is idea for manufacturing and OEM instrumentation. Ask about our IP and NEMA options.
    Operational Types Continuous metering, single/multiple dispense, flow direction, and suck back
    Fluid can be controlled bi-directional, allowing for fast purge or prime, clean in place, and accurate dispensing and metering
    Stored Programs Link, loop, cycle, delay up to 100 programs on each pump drive Automate your dispensing process therby minimizing user error while simultaneously increasing efficiency of your manufacturing/dispensing process.
    Communication EtherNet IP, RS232, RS485 1/2 or full duplex Zaxis offers a number of communication options for OEM applications prefectly adapted for automation.



    • Automatic adjustment from pL to mL
    • Designed, manufactured and assembled in the USA                                                *
    • Independently controlled stroke rate, displacement, and fine adjust
    • No Valves
    • Ethernet IP & RS485
    • Store up to 100 programs
    • Foot switch or remote start
    • Patented electronic adjustment
    • Touch Screen Interface allows you to control up to 32 pumps at once
    • Control RPM, forward, reverse, quick-prime, suck-back and more
