- Fluid connections: Tri-clamp 3/4”
- Air connection: 6 mm

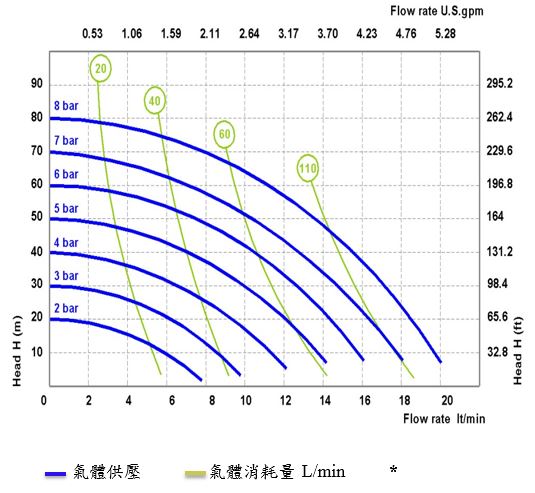

- Max flow rate: 20 L/min.
- Max air pressure: 8 bar
- Max delivery head: 80M
- Max suction lift dry (Self-priming): 6 M
- Max suction lift wet (Self-priming): 9.8 M
- Max solid passing: 3 mm
- Noise level: 65 dB
- Displacement for cycle: 30 cc
- Max viscosity: 12,000 cps
- ATEX zone 1 : EX II 2/2 GD c IIB T135°C
- ATEX zone 2 : EX II 3/3 GD c IIB T135°C
-
-
