- Brand
- TOYOBO
- Product Name
- Teonex@PEN FILM
- Item
- Q83
- Brief Introduction：
- FPC, MTS
-

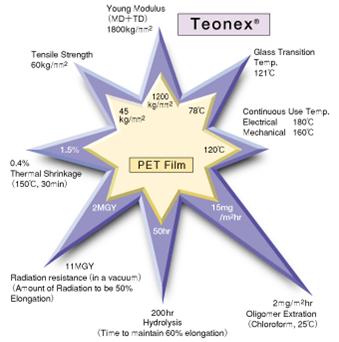

PEN film has many superior properties such as strength, heat resistance, anti-hydrolysis, dimensional stability, low oligomer extraction, etc. This excellent film has the potential to replace other engineering films with good cost performance. PEN film also has the same handling properties as PET film. It is expected to be applicable for advanced uses in new markets.
-
0.025mm, 0.038mm, 0.050mm, 0.075mm, 0.125mm。
Extremely low heat shrinkage type treated by off-line process. Applicable for the soldering process.
Thickness range:
PropertyTesting methodUnitPENUltimate Tensile Strength(MD)ASTM D882-88Kg/m22,250Modulus (MD)ASTM D882-88%65Continuous UseTemperature (Mechanical)ASTM D882-880C160Continuous UseTemperature (Electrical)UL0C180Glass Transition Temp.UL0C155Melting Temperature0C269Dielectric StrengthASTM D150-81V/25ｕm7,000Dielectric Constant(@1.0MHz)ASTM D150-813.16Moisture AbsorptionIPC-TM-650%0.6Densityg/cm31.36FlammabilityUL 94VTM-2 -
